LED display Intelligent Counting Meter RS485 Key Lock Function CI series

Brand Name : Toky

Model Number : CI series

Certification : CE

Place of Origin : China

MOQ : 5sets

Payment Terms : T/T

Delivery Time : 15~35days

Packaging Details : Carton

Power supply voltage : AC/DC 100～240V

Power consumption : ≤5W

Accuracy : ±1 impulse

Working environment : -10～50℃ (no condensation)

Display range : -199999～999999

Output delay time : 0～499.99s

Sampling rate : 1Hz/30Hz/1KHz/5KHz/10KHz

Mechanical life : ≥10000000times

Contact Now

CI series intelligent counting meter, counting/count length/count batch, high counting speed, RS485, key lock function

1. Features and advantages:

a). Function: count/ counting length/ counting batch.
b). High counting speed,up to 10Kcps.
c). One batch counting/two groups counting outputs.
d). Voltage input(PNP)and non-voltage input(NPN),software switch.
e). Adjustable pulse width of control signal.
f). Key Lock Function.
g). Optional RS485 communication function.
h). High anti-interference capability.

i). High light LED display.

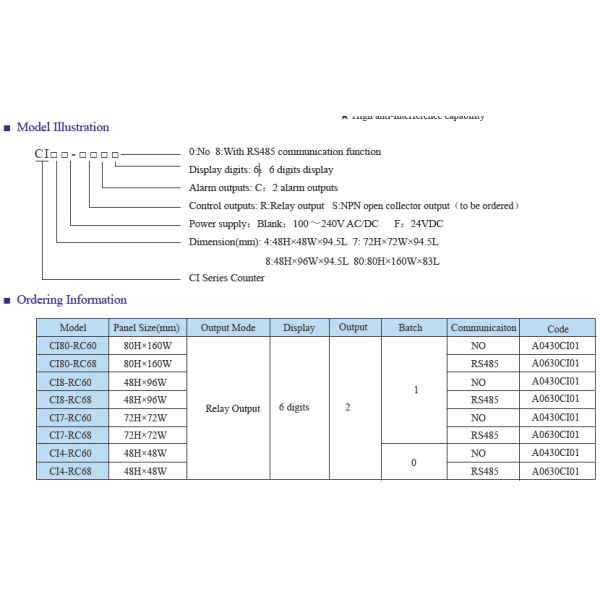

2. Model specification:
LED display Intelligent Counting Meter RS485 Key Lock Function CI series
3. Technical parameter:

Display Display digits Dual-line 6digits, high light LED
Display range -199999～999999
Input signal Signal type Square wave, sine wave, passive contact
Input impedance Voltage input impedance:5.4KΩ
Non-voltage input:short circuit impedance 1KΩ max.
Signal level High level:5～30VDC
Low level:0～2VDC
Sampling rate 1Hz,30Hz,1KHz,5KHz,10KHz available
Trigger edge NPN falling edge, PNP rising edge
Counting accuracy ±1impulse
Ratio coefficient 0.00001～9.99999
Relay Load capacity ≥100000times(NO 25VAC 3A resistive load;NC 250VAC 2A resistive load)
NO/NC guide Refer to the connections
Mechanical life ≥10000000times
Output Output mode 12modes including F,N,C,R
Delay time 0～499.99s
Auxiliary power supply Supply voltage 12VDC±10%
Capacity ≤100mA
Environment Working environment -10～50℃(no condensation)
Storage environment -25～65℃(no condensation)
Communiction Communication protocol RS485 Modbus RTU
Baud rate 4.8kbps,9.6kbps
Adress range 0～247
Function Power fail memory YES/NO optional
Reset pause lock Optional
Power Power voltage AC/DC 100～240V
Total consumption ≤5W
IP grade Panel IP54
Transportation requirement Vibration 10～55Hz, 0.75mm XYZ direction
EMC ESD level 3
Pulse group level 4 ±4000Vp-p
Frequency drop level 3
Lightning surge level 3, line to line ±2000V
Safe Dielectric strength 2000VAC 50/60Hz
Insolation strength 100MΩ DC 500V

4. Appearance and installation dimensions:
LED display Intelligent Counting Meter RS485 Key Lock Function CI series

5. Connections:
LED display Intelligent Counting Meter RS485 Key Lock Function CI series

6. Contact:

Sales: bassy shi

Cell phone: +86 13773069136

Email: bassy.shi@youjiazhineng.com
