Frequency Electrical Counter Meter Tachometer High Accuracy LED Display

Name: Frequency Electrical Counter Meter Tachometer High Accuracy LED Display
Brand: Toky
Price: 1 USD

Brand Name : Toky

Model Number : DM series

Certification : CE

Place of Origin : China

MOQ : 5sets

Payment Terms : T/T

Delivery Time : 15~35days

Packaging Details : Carton

Power supply voltage : DC 5V±10% ≤90mA

Input level : 5～25V

Frequency span : 0.1～10KHZ

Accuracy : 0.05%

Working environment : 0～50℃ (no condensation) ≤85% RH

Counting speed : ≤1000CPS

Contact Now

DM Frequency meter Tachometer Counter High Accuracy LED display

1. Features and advantages:

a). LED display.

b). Ultra-thin design, delicate size, easy to install.

c). High accuracy, good performance.
d). For measuring frequency/tacho/counting.
e). Decimal point floating display. Display the fractional values accoriding to available space next to the last digit from the left.

2. Model specification:
Frequency Electrical Counter Meter Tachometer High Accuracy LED Display

3. Technical parameter:

Display	Red LED
Input resistance	>10KΩ
Input level	5～25V
Signal	Square or sino wave signal
Max.input	25V
Frequency accuracy	±0.05%±1Digit(DM4A-FR1,DM4B-FR1); ±0.05%±10Digits(DM5C-FR1)
Frequency span	0.1～10KHZ
Conting speed	≤1000CPS
Sampling rate	auto
Decimal point	set automatically
overflow indication	"UUUU"or"UUUUU"
Power supply	DC 5V±10% ≤90mA
Operating temperature	0～50℃ <85%RH

4. Appearance and installation dimensions:

Frequency Electrical Counter Meter Tachometer High Accuracy LED Display

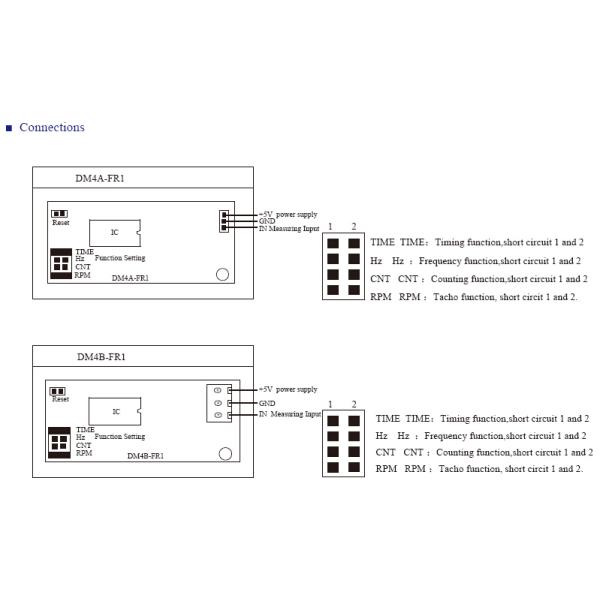

5. Connections:

6. Contact:

Sales: bassy shi

Cell phone: +86 13773069136

Email: bassy.shi@youjiazhineng.com
